Standing apparatus

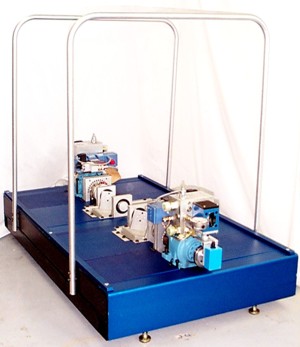

The experimental
apparatus shown at right is a bilateral electro-hydraulic actuator system
designed to measure dynamic ankle joint stiffness in humans during upright
stance.
