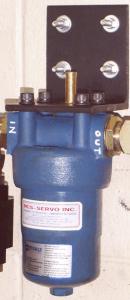

Pressure Filter - standing

This filter is located on the line supplying both actuators. Each actuator requires a min of 8GPM, which corresponds to 10 rad/s of motion. Hence the filter needs to be rated for at least 16GPM; the 31GMP model was chosen (20 PSI pressure drop.) Port is SAE-20.

Part Number: PI3615-14 SAE/2215

Replace the filter element when the red indicator pops out of the stem at the top of the filter head.
