Filter Status Module

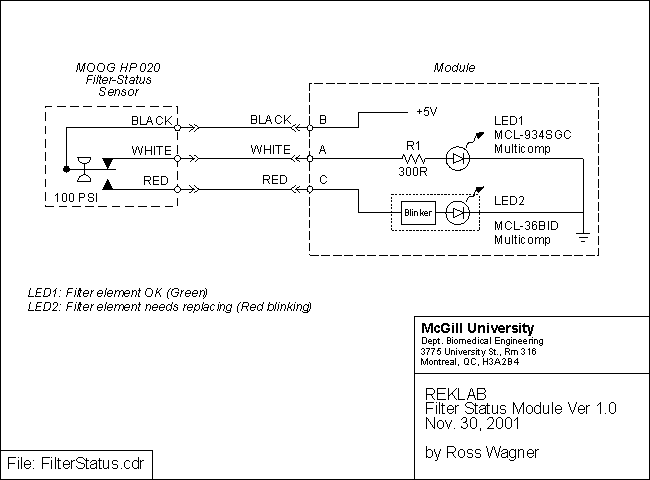

This schematic also available as: FilterStatus.cdr (v.9), FilterStatus.pdf

Components:

MCL-36BID: Blinking LED

Functional Description

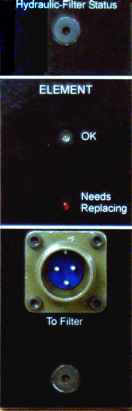

The Moog filter-status sensor uses the differential pressure drop across the HP020 filter element to activate a SPDT switch. When the filter element is sufficiently blocked to cause a substantial differential pressure drop (here > 100PSI) the sensor flips the switch from the normally closed to normally open position. On the module, a steady-lit green LED indicates that the filter element is fine. A red flashing LED indicated the non-critical condition that the filter element needs replacing.

Last modified: July 27, 2006 Ross Wagner
