Power Box

The power box, attached to the front of the hydraulic power unit (HPU), is responsible for:

  • Interfacing with the Operator Interface Panel.
  • Generating power for the Operator Interface Panel.
  • Switching power to the electric motor.

The cable going to the Operator Interface Panel may be seen coming into the box from the bottom.

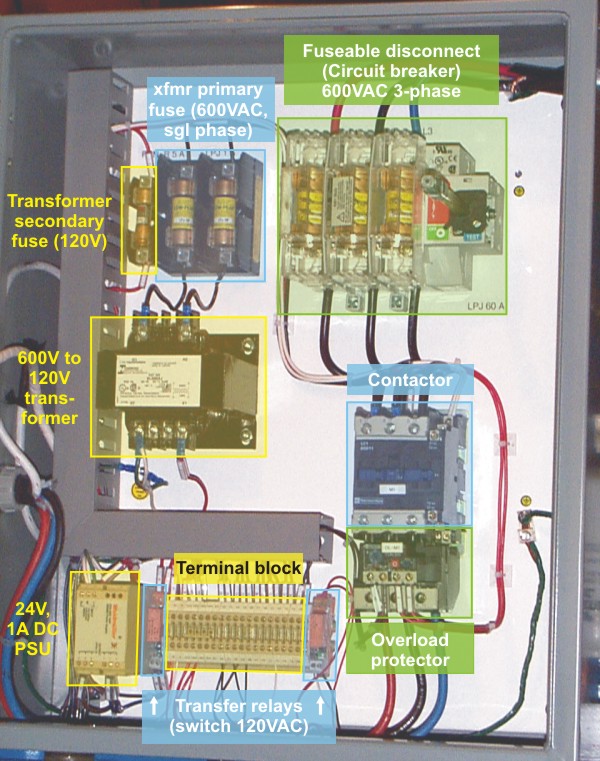

Below is a close-up view of the internals of the box, highlighting various sections. See this wiring diagram in PDF format.
