Fluid Schematic (Obsolete)

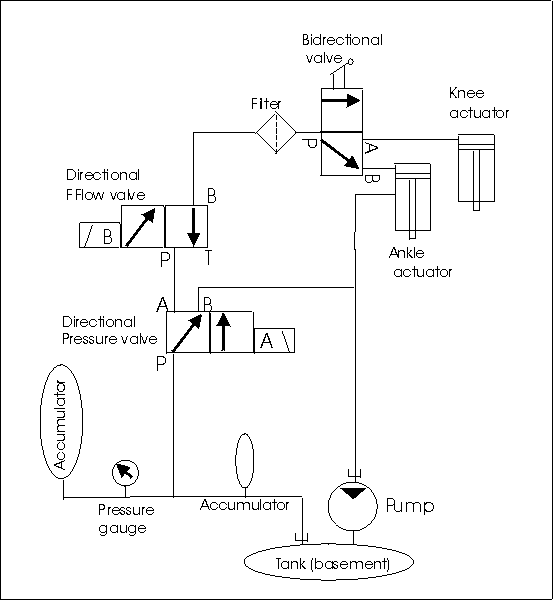

The hydraulics system pumps the fluid to the servo-valve, which will then activate the actuator. A pump is located in the basement, which pumps fluid through the system. The schematic of the pipes is as follows:
